LMK-M Linear Bushing

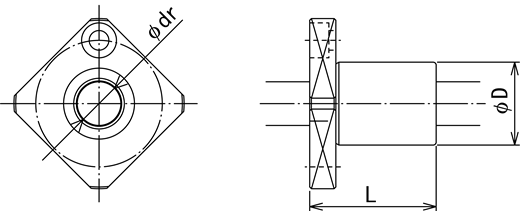

Drawing
Datasheet
| Model No. | Main dimensions | |||||||||
| Inscribed bore diameter | Outer diameter | Length | Flange | diameter | ||||||
| dr | Tolerance | D | Tolerance | L | Tolerance | D1 | Tolerance | K | ||
| Precision | High | Precision/High | ||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| LMK 6M | 6 | — | — | 12 | 0 | 19 | 0 | 28 | 0 | 22 |
| –0.011 | –0.2 | |||||||||
| LMK 8SM | 8 | — | — | 15 | 0 | 17 | 0 | 32 | 0 | 25 |
| –0.011 | –0.2 | |||||||||
| LMK 8M | 8 | — | — | 15 | 0 | 24 | 0 | 32 | 0 | 25 |
| –0.011 | –0.2 | |||||||||
| LMK 10M | 10 | — | — | 19 | 0 | 29 | 0 | 39 | 0 | 30 |
| –0.013 | –0.2 | |||||||||
| LMK 12M | 12 | — | — | 21 | 0 | 30 | 0 | 42 | 0 | 32 |
| –0.013 | –0.2 | |||||||||
| LMK 13M | 13 | — | — | 23 | 0 | 32 | 0 | 43 | 0 | 34 |
| –0.013 | –0.2 | |||||||||
| LMK 16M | 16 | — | — | 28 | 0 | 37 | 0 | 48 | 0 | 37 |
| –0.013 | –0.2 | |||||||||
| LMK 20M | 20 | — | — | 32 | 0 | 42 | 0 | 54 | 0 | 42 |
| –0.016 | –0.2 | |||||||||
| LMK 25M | 25 | — | — | 40 | 0 | 59 | 0 | 62 | 0 | 50 |
| –0.016 | –0.2 | |||||||||
| LMK 30M | 30 | — | — | 45 | 0 -0.016 | 64 | 0 | 74 | 0 -0.2 | 58 |
